Thru Scan Machine

Shafts, dowels and long bolts up to 300 mm — outer diameter, groove diameter, total length and step length measured without contact.

Up to 300 mm · 1 µm
Compare
Thru Scan Machine
Overview

Vision measuring machine for shafts, dowels and long bolts

Repeatability
From 1 µm
Part length
Up to 300 mm
Camera stations
1
Footprint
550 × 350 × 990 mm
Weight
100 kg approx.

The Thru Scan Machine is a dimensional inspection solution for parts up to 300 mm long — shafts, dowels, long bolts, axles, step shafts and cam shafts. The camera station scans the part and the software measures outer diameter, groove diameter, total length and step length.

Read the full description

The machine changes over quickly between variants and reports batch-wise and SPC data, and it has a user-friendly interface that is simple to operate.

Specification

Key features

  • Can check parts length up to 300 mm.
  • Repeatability starts from 1 micron
  • High Speed Precise Scanning
  • Multiple Variants Quick Changeover
  • Can measure multiple critical diameters

Can inspect

ShaftsDowelsLong Bolts

Inspection parameters

Dimensions
Outer DiameterGroove DiaTotal Length

Camera stations

1 camera — 1st Top: Outer Top Dimensions.

Add-ons

Feedback Table

Download the products brochure (PDF) →

In pictures

The machine and the parts it inspects

Photographs from our own catalogue: the machine, sample parts it has inspected and, where shown, the defects its cameras flag.

What the operator sees

Inspection results on screen

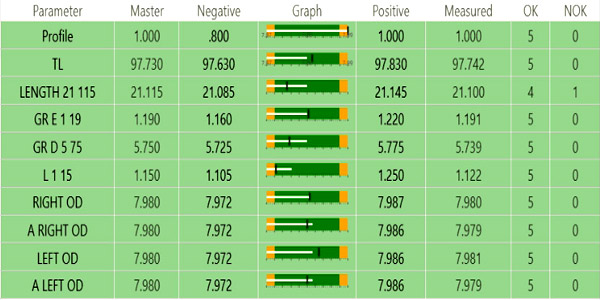

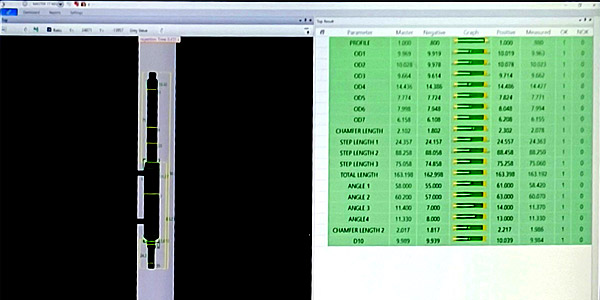

Screens from the machine's own software: the part as the camera sees it, the measured dimensions overlaid, and the parameter table with master value, tolerance, measured value and the OK / NOT-OK count.

Why choose it

Why manufacturers choose the Thru Scan

Manufacturers of shafts, dowels and long bolts choose the Thru Scan for contactless measurement of long parts with high-speed precise scanning and quick changeover between variants.

Common questions

Questions buyers ask about the Thru Scan

What parts can the Thru Scan machine inspect?

Shafts, dowels, long bolts, axles, step shafts, cam shafts and other long cylindrical components.

What dimensions does it check?

Outer diameter, groove diameter, total length and step length.

What is the maximum part length?

Parts up to 300 mm long.

What repeatability does it provide?

Repeatability starting from 1 µm for dimensional inspection of long precision components.

Does it support quick changeover and SPC reporting?

Yes — quick changeover between multiple variants, and batch-wise and SPC reports for inspection data.
