Conveyorised Inspection & Sorting Machine

Conveyor-fed inspection and sorting for dowel pins, studs and small shafts — auto feeding with SPC and batch reports.

300 PPM · 1 µm
Compare
Conveyorised Inspection & Sorting Machine
Overview

Vision inspection machine for dowel pins, small studs and small shafts

Inspection speed
Up to 300 PPM
Repeatability
From 1 µm
Camera stations
2
Footprint
1900 × 1400 × 2100 mm
Weight
500 kg approx.
Loading
Automatic feeding

The Conveyorised Inspection & Sorting Machine is built for efficient, accurate inspection of small cylindrical parts — dowel pins, small studs and small shafts — with an integrated automatic feeding system.

Read the full description

Two side camera stations inspect outer diameter, length, chamfer present or absent, chamfer angle and width, thread length and thread major and minor diameter.

Specification

Key features

  • Auto Feeding System.
  • High Accuracy Dimensional Inspection
  • Repeatability starts from 1 micron.
  • Inspection Speed up to 300 PPM.
  • Automatic and Manual saving of data with Batch Wise Report and SPC Report

Can inspect

Dowel PinsSmall StudsSmall Shafts

Inspection parameters

Dimensions
ODLengthChamfer Present/ AbsentChamfer Angle/ widthThread LengthThread Major/ Minor Diameter

Camera stations — standard configuration

CameraPositionOperations
1stSideup to 30 mm length, Side Dimension Inspection
2ndSideup to 85 mm length, Side Dimension Inspection

Add-ons

Packaging MachineBowl Feeder

Download the products brochure (PDF) →

In pictures

The machine and the parts it inspects

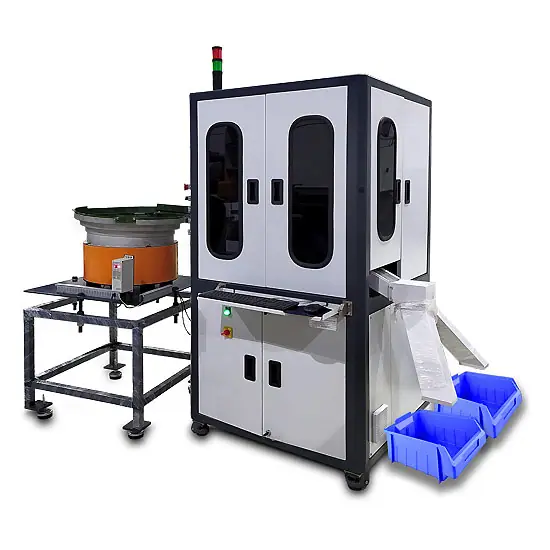

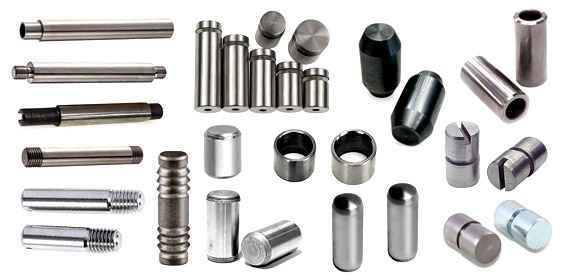

Photographs from our own catalogue: the machine, sample parts it has inspected and, where shown, the defects its cameras flag.

What the operator sees

Inspection results on screen

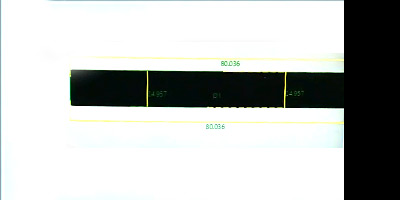

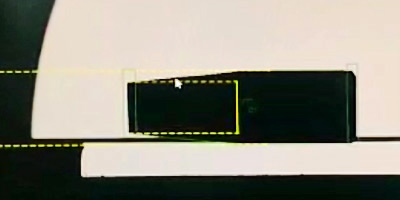

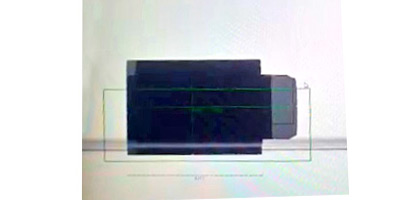

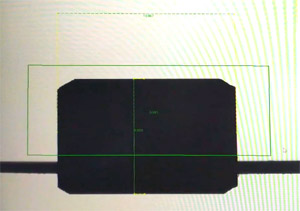

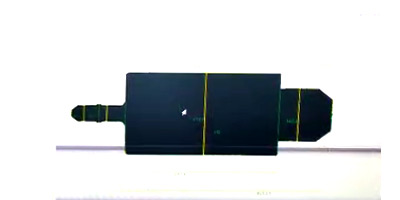

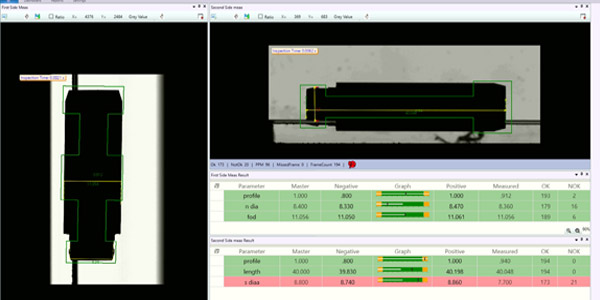

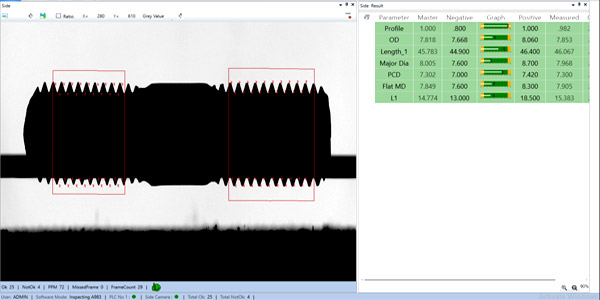

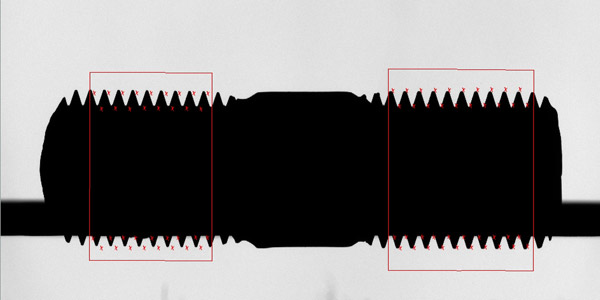

Screens from the machine's own software: the part as the camera sees it, the measured dimensions overlaid, and the parameter table with master value, tolerance, measured value and the OK / NOT-OK count.

Why choose it

Why manufacturers choose the Conveyorised Inspection machine

Manufacturers choose the Conveyorised machine for small cylindrical parts that must be fed and inspected continuously — auto feeding and auto sorting in one line.

Common questions

Questions buyers ask about the Conveyorised Inspection machine

What parts can the Conveyorised machine inspect?

Dowel pins, small studs and small shafts — small cylindrical components that need high-accuracy dimensional inspection and sorting.

What dimensions does it check?

OD, length, chamfer presence or absence, chamfer angle and width, thread length and thread major and minor diameter.

What repeatability and speed does it provide?

Repeatability starting from 1 µm and inspection speeds of up to 300 parts per minute, with an automatic feeding system.

Does it support SPC reporting?

Yes — automatic and manual data saving with batch-wise and SPC reports.

Which camera set-up does it use?

Side cameras for side-dimension inspection: one for parts up to 30 mm long and one for parts up to 85 mm.
