The Optical Inspection & Sorting Machine - Nano Glass Disc is a compact and versatile tabletop machine designed to provide detailed dimensional inspection and sorting capabilities. This advanced machine utilizes optical technology to ensure precise and accurate inspection of various components, particularly turned precision parts, nuts - bolts, fasteners, washers, rubber parts and plastic parts.
Featuring a compact design, the Nano Glass Disc machine offers key features such as detailed dimensional inspection, repeatability of 5 microns, and a high production rate ranging from 100 to 200 parts per minute (PPM). It is equipped with manual as well as auto feeding system options, providing flexibility in the inspection process.

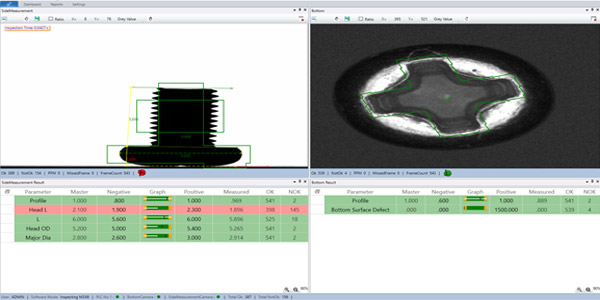

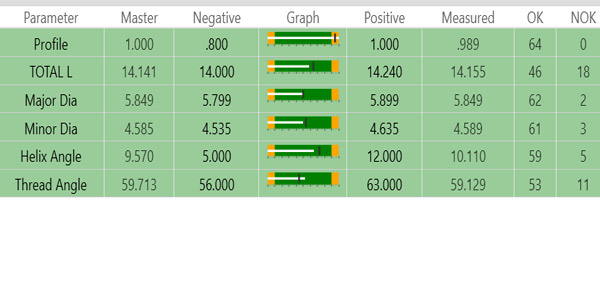

The machine is capable of inspecting various dimensions including angle, height, inner diameter, outer diameter, major diameter, minor diameter, outer dimensions. Additionally, it can detect operation missing and thread absence/presence.
For more information about the Optical Inspection & Sorting Machine - Nano Glass Disc and other advanced inspection solutions, please contact us.
| Camera | Position | Operations |
|---|---|---|

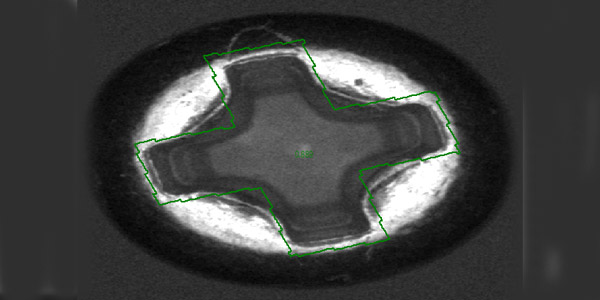

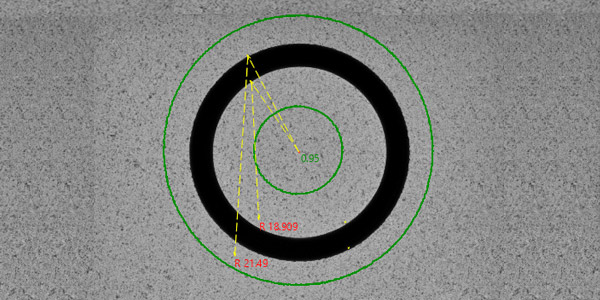

| 1st | Top | OD, ID Inspection |

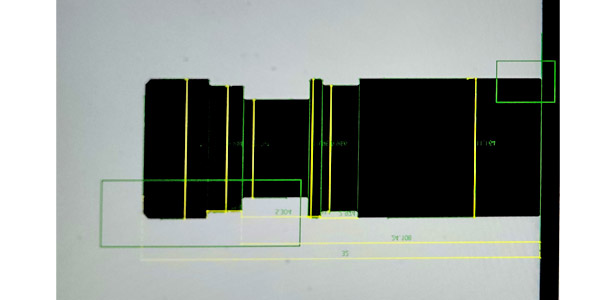

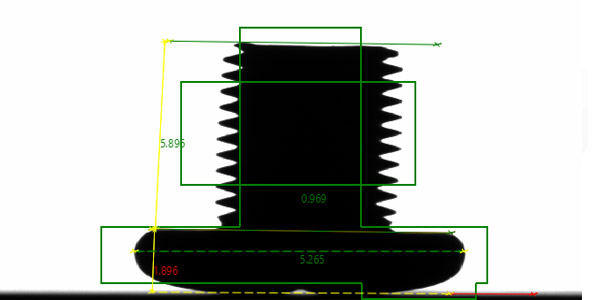

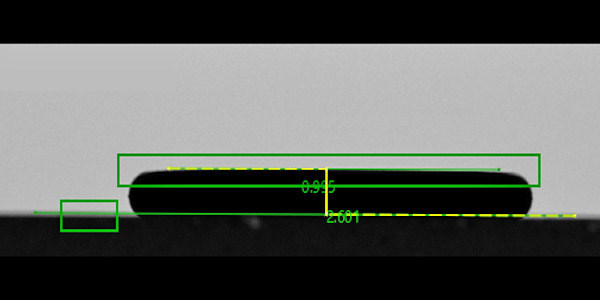

| 2nd | Side | Side Dimension Inspection |
The Optical Inspection & Sorting Machine - Nano Glass Disc manufactured by Visimaster has the capability to segregate good parts from bad ones. These machines are developed under the proper supervision of top-class engineers of Visimaster. So, if you are looking for the best quality compact table-top vision inspection machine in Pune or in any other part of India, the machine from Visimaster is the best. You can reach out to us anytime and get the product delivered. We also have a prompt customer service team who are always there to respond to you with any queries.
| Model | Size | |
|---|---|---|
| FOV L x D | NGD3020 | 30 mm x 20 mm |
| NGD4030 | 40 mm x 30 mm | |
| Dimensions | 1000 x 600 x 900 | |
| Weight | 100 Kg Approx. |

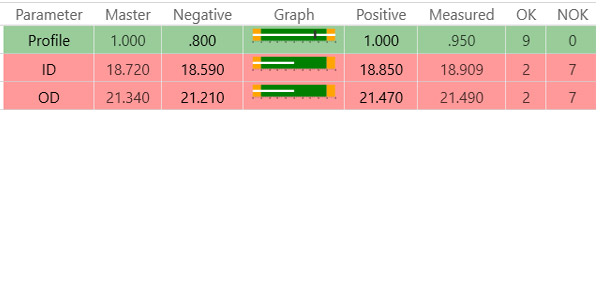

The Nano Glass Disc Machine is a compact tabletop optical inspection and sorting machine designed for detailed dimensional inspection of turned precision parts, nuts, bolts, fasteners, washers, rubber parts, and plastic parts. It offers repeatability of 5 micron, inspection speed up to 200 PPM, manual and auto feeding options, and batch-wise and SPC data reporting. The machine can inspect parameters such as ID, OD, angle, height, major diameter, minor diameter, outer dimensions, chamfer, and radius making it suitable for precise and consistent inspection in compact production environments.
Dimensions
Other
Operation missing, Thread absence/presence
