Glass Disc Machine for O Rings Inspection

Glass Disc Machine for O Ring Inspection
Enquiry For Product Details
x
Name : Enter Your Mobile No: Enquiry for product:

Glass Disc Machine for O Rings Inspection Introduction:

Key Features

  • Manual as well as Auto loading systems.
  • Inspection Speed up to 600 PPM.
  • Quantity wise separate OK Ejections
  • Detailed Dimensional & Surface Defects Inspection

Can Inspect

  • O Rings
  • X Rings
  • Square Rings

Sample Parts

Sample parts for Glass Disc Inspection Machine for O Rings includes O Rings, Square Rings
O Ring Inspection Machine can inspect parts including X Rings

Glass Disc Machine for O Rings Overview

The Glass Disc Machine for O Rings Inspection is a specialized automated system designed specifically for inspecting O-rings. It combines advanced optical inspection technology with precision automation to ensure accurate and reliable quality.

This machine is equipped with advanced features to detect and identify various defects and imperfections on the surface of O-rings. It can effectively detect and inspect defects such as ID Dent, ID Cut, OD Dent, Dirt Mark, Flow Mark, Bend, Flash, Cut Mark, Peel Off & Short Mould. The machine utilizes high-precision optical sensors and sophisticated algorithms to ensure precise and reliable defect detection.

In addition to surface defect checking, the machine also performs dimensional inspection for O Rings, X Rings & Square Rings. It can measure critical parameters such as inner diameter, outer diameter, thickness and cross section to ensure accurate dimensional accuracy and consistency. The Glass Disc Machine for O Rings Inspection is designed to handle high-speed inspection requirements, with a capacity of up to 600 parts per minute. This enables efficient and rapid inspection of large volumes parts, optimizing production throughput and meeting demanding manufacturing schedules.

The machine supports both manual and automated loading systems, providing flexibility to adapt to different production environments. It incorporates quantity-wise separate OK ejections, allowing for efficient sorting and segregation of acceptable parts from defective ones. By utilizing the Glass Disc Machine for O Rings Inspection, manufacturers can ensure the delivery of good/ok parts. It helps minimize the risk of product failures, enhances customer satisfaction, and improves overall productivity and efficiency in the manufacturing process.

Inspection Parameters:

Surface Defects

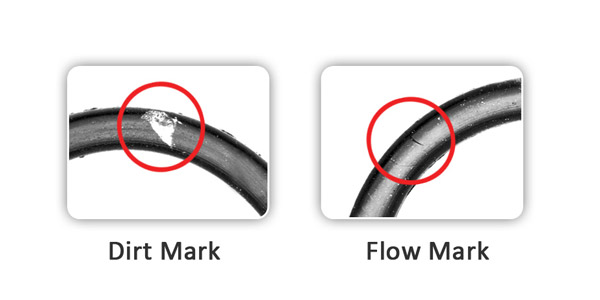

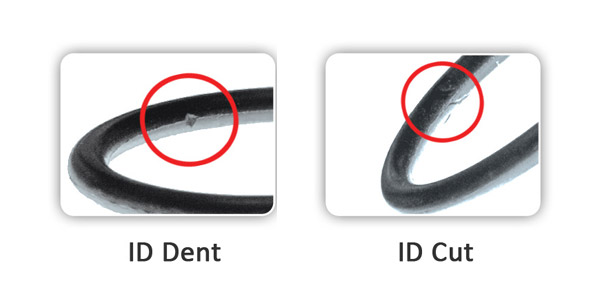

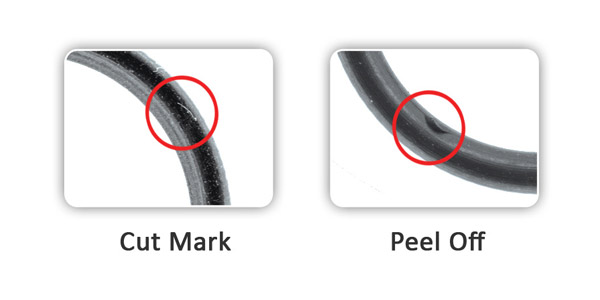

Dirt Mark, Flow Mark, ID Dent, ID Cut, OD Dent, Bend, Flash, Cut Mark, Peel Off & Short Mould

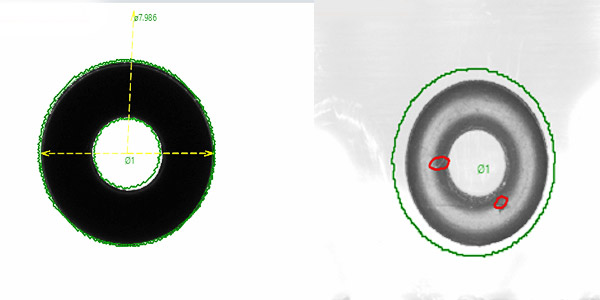

Dimensions

  • Thickness
  • Inner Diameter
  • Outer Diameter,
  • Cross Section

Specifications:

Camera
Position
Disc
Parameters
1st
Top
1st

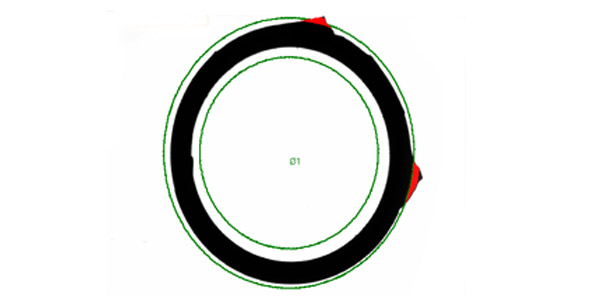

ID, OD, flash
2nd
Side
1st
Bend
3rd
Top
1st
Top flat surface
4th
Top
1st
Top Outer 3600Surface
5th
Top
1st
Top Inner 3600 Surface
6th
Top
2nd
Bottom flat surface (flipped)
7th
Top
2nd
Bottom Outer 3600 Surface (flipped)
8th
Top
2nd
Bottom Inner 3600 Surface (flipped)

Why Choose Glass Disc Machine for O Rings Inspection?

The Glass Disc Machine for O Rings Inspection is designed for high-speed dimensional and surface defect inspection of O Rings, X Rings, and Square Rings. It offers inspection speeds up to 600 PPM, detailed dimensional and surface defect inspection, manual and auto loading options, and quantity-wise separate OK ejections. The machine measures inner diameter, outer diameter, thickness, and cross section and detects defects such as ID dent, ID cut, OD dent, dirt mark, flow mark, bend, flash, cut mark, peel off, and short mould ensuring accurate and consistent inspection for high-volume production.

Frequently Asked Questions

  • What types of sealing rings can be inspected by the Glass Disc Machine for O Rings?
    The machine can inspect O Rings, X Rings, and Square Rings. It is designed for both dimensional inspection and surface defect inspection of these sealing components.
  • What dimensions and defects can the O Ring inspection machine check?
    The machine can measure inner diameter, outer diameter, thickness, and cross section. It can also detect ID dent, ID cut, OD dent, dirt mark, flow mark, bend, flash, cut mark, peel off, and short mould defects.
  • What speed and loading options does the O Ring inspection machine provide?
    The machine offers inspection speeds of up to 600 parts per minute and supports both manual and auto loading systems. It also provides quantity-wise separate OK ejections for efficient sorting of inspected parts.
  • Can the O Ring inspection machine perform 360° surface inspection?
    Yes. The machine uses multiple camera positions to inspect the top flat surface, top outer 360° surface, top inner 360° surface, bottom flat surface, bottom outer 360° surface, and bottom inner 360° surface of the inspected rings.
  • What dimensional parameters are measured for O Rings, X Rings, and Square Rings?
    The machine measures inner diameter, outer diameter, thickness, and cross section to ensure dimensional accuracy and consistency of O Rings, X Rings, and Square Rings.
