Applications · Projects delivered · Bhosari, Pune
Parts we have inspected, and what we checked on them.
Twelve inspection systems we have built: the part, the dimensions and defects checked, and the camera system that did it.
01 · Fasteners
Fastener inspection machines

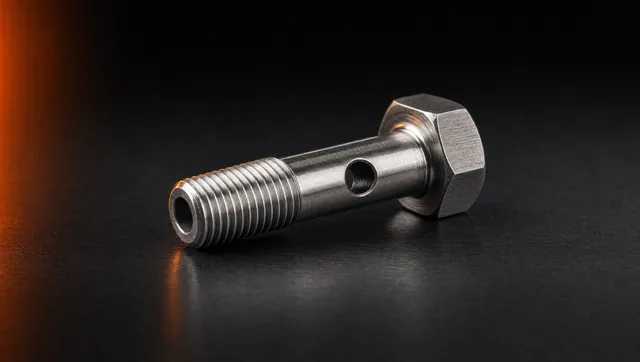

Banjo bolt inspectionOD, length, thread major/minor dia, thread angle; damages on thread & shank, bearing face, hex, hole continuity6-camera systemFastener inspection machines →Glass Disc Machine for Bolts Inspection →
Camera system6-camera system
Tappet screw inspectionTotal length, OD, thread major/minor dia; dent, damage, flat threads, head damageCamera system4-camera system
IC stud inspectionTop & bottom flat surface defects, cone defects, ID wall defects on cone side, outer side defects02 · O-rings & rubber
O-ring inspection machines

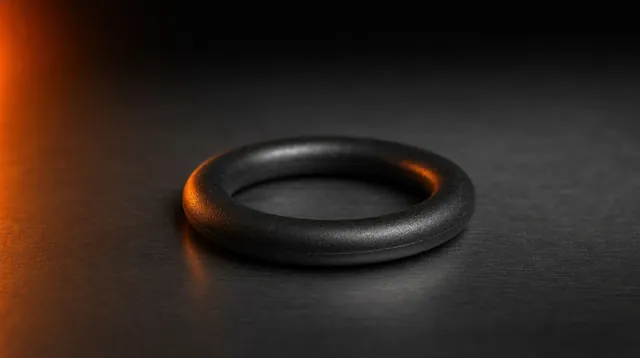

O-ring inspectionID, OD & flash; short fill, poor flow, cut marks, dents, dust, ID/OD 360° parting-line defects6-camera systemO-ring inspection machines →Glass Disc Machine for O Ring Inspection →
03 · Turned & precision parts
Precision parts inspection machines
Camera system8-camera system
Bearing cage inspectionTotal length, ID, OD, side pocket dimensions; top & bottom flat surfaces, inner and outer 360°Camera system6-camera system
Planetary gear inspectionOD, ID, diameter, thickness; gear-tooth defects — chip off, cracks, dents, foreign particles, broken tooth, burrCamera system5-camera system
Collet inspectionTotal length, total height; line mark, pitting mark, dent mark

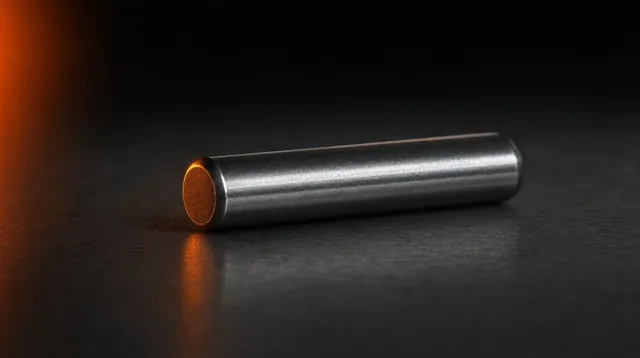

Shaft inspectionOD, length, thread major/minor diameter1-camera system04 · Plastic parts
Plastic parts inspection machines

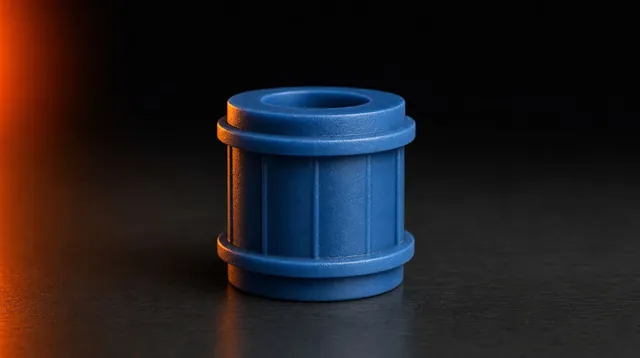

Plastic part inspectionFlash, protrusion, short shot pin, white patches, stake pin & guard bar damage, damaged insert, comb damageMulti-variety visionPlastic parts inspection machines →Glass Disc Machine for Plastic & Rubber Parts Inspection →
05 · Automotive components
Auto parts inspection systems

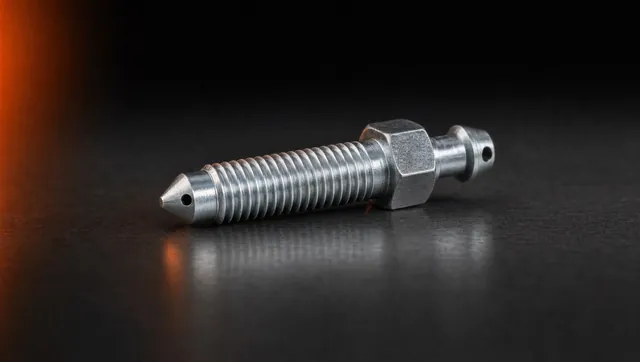

Bleeder screw inspectionHole concentricity, thread parameters (major/minor dia, pitch, thread angle); top, outer 360°, inclined, cone & bottom surfaces11-camera custom build (standard machine: 8)Camera system5-camera system
Valve seat inspectionOD, thickness, ID with front-light camera; crack, scratch, grinding cut at top/bottom face, ID scalingCamera system1 camera + 2 laser units
Laser inspection — radiator copper blockTotal length, total width, flatness900+Installations
500+Clients
90%Repeat clientele
70+Engineers
Your part could be next.
These are twelve of the projects we have delivered. Courier sample parts to our Bhosari lab for a free feasibility study, or describe the part to VisiExpert to start.
